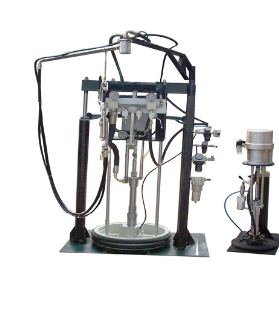

　　The small edition of active gluing machine for hollow glass has already talked a lot with you, such as the development of occupation, the overall status quo, and the general knowledge of the occupation related to hollow glass, and so on. However, Xiaobian found that many readers in private trust Xiaobian asked about the basic operation of the hollow glass active gluing machine and other related issues. Today, Xiaobian and everyone clearly explained the adjustment and operation of the active gluing machine for hollow glass.

　　操作流程：

　　Operational procedures:

　　1、 放在一個平整潔凈的平面上，銜接電源和氣源，兩者承認接通之后就開始進行操作。

　　1. Place it on a flat and clean surface, connect the power supply with the air supply, and both of them admit that the operation will begin after the connection.

　　2、 打膠機中間會有一個混膠過程，在供膠機上面混膠完畢之后，需要在電子顯示屏上控制面板上進行挑選“行走設置”。翻開界面之后按T1鍵行進行走。在機頭停止時，翻開機頭上面B膠閥門，接著在控制面板上找到Esc鍵返回主界面，然后F2狀況設置，在翻開界面后按K3鍵供膠開始，當膠嘴中完全混合的膠流出按K4鍵完畢供膠。

　　2. There will be a mixing process in the middle of the glue beater. After mixing is finished on the glue feeder, it is necessary to select "walking settings" on the control panel of the electronic display screen. Open the interface and press the T1 key to go. When the nose stops, turn on the B glue valve above the nose, then find Esc key on the control panel to return to the main interface, then set F2 status, press K3 key to start gluing after opening the interface, and press K4 key to finish gluing when the completely mixed glue out of the nozzle.

　　3、 需要記住的是工作完畢之后或許在較長時刻不工作時，需要沖洗混膠設備，避免供膠管的堵塞，影響未來使用作用。

　　3. It should be remembered that after the completion of the work, it is necessary to flush the mixing equipment to avoid the blockage of the rubber supply tube and affect the future use of the mixing equipment when it is not working for a long time.

　　4、 調整環節：吸盤調整：涂膠機吸盤與旋轉臺的高度調整合適。

　　4. Adjustment link: sucker adjustment: the height adjustment of sucker and rotary table is suitable.

　　5、 氣動開關、膠嘴、探針調整：將事先合好的中空玻璃放在旋轉臺上，靠近涂膠機工作面，然后中空玻璃推到定位上，調整膠嘴與玻璃的高度，使出膠嘴的出膠口中心語鋁槽中心在同一個水平線上：膠嘴與玻璃之間的頂力合適：鋁槽深度檢測探針與出膠口中心線在一致水平線上。

　　5. Pneumatic switch, glue nozzle and probe adjustment: place pre-assembled hollow glass on rotating table, close to glue machine working face, then push hollow glass to position, adjust the height of glue nozzle and glass, so that the center of aluminium groove of glue nozzle exit is on the same horizontal line: the top force between glue nozzle and glass is appropriate: aluminium groove depth detection probe and center line of glue outlet At the same level.

　　6、 啟動開關（機頭的前端的光開關）與玻璃之間的檢測間隔（1.5~2mm）。在控制面板上挑選“狀況設置”，翻開狀況設置后挑選“吸盤開（K5鍵）”，此時機頭會往前移動，如果不往前移動則查看并調整啟動開關的檢測間隔。

　　6. The detection interval between the startup switch (the optical switch at the front end of the nose) and the glass (1.5-2 mm). Select the "status setting" on the control panel and select the "sucker opening (K5 key)" after turning on the status setting. At this time, the nose will move forward. If it does not move forward, check and adjust the detection interval of the start switch.
